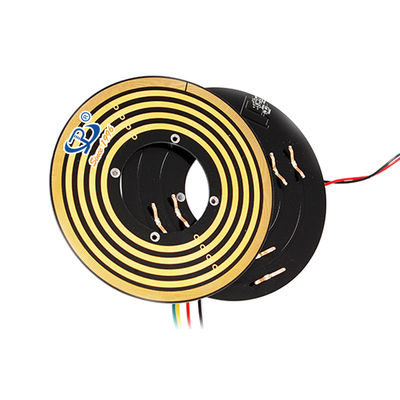

40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine

  • 40 mm Inner Diameter 5 Circuits 24V Voltage Rating Pancake Slip Ring for Coiling Machine
Menşe yeri Çin
Marka adı JINPAT
Sertifika ISO/CE/RoHS/UL
Model numarası LPKS040-0501
Min sipariş miktarı 10 adet
Fiyat negotiable

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
devreler 5 devre Voltaj derecesi 24V
Mevcut Derecelendirme Devre başına 1A Temas malzemesi Değerli metal
Çalışma hızı 0~150rpm İç Çap Φ40mm
Dielektrik mukavemet ≥300V@50Hz Konut malzemesi FR-4
Yalıtım direnci 100MΩ@100VDC Tel uzunluğu Stator Teli:300mm Rotor Teli:300mm
Çalışma Sıcaklığı -20 ° C ~+60 ° C Nem ≤60% bağıl nem
Dönme Hızı Yüksek Kurulum yöntemi Flanş üzerine sabitlenmiş PCB kartı
Kalınlık 6 mm
Vurgulamak

40 mm Inner Diameter Pancake Slip Ring

,

5 Circuits Flat Slip Ring

,

24V Voltage Rating LPK Series Slip Ring
Ürün Açıklaması
ID 40 mm 5 Circuits Flat Slip Ring with Optional Voltage for Coiling Machine
Product Overview

The LPK series pancake slip rings by JINPAT feature an ultra-thin 6mm design, specifically engineered for rotation systems with limited vertical installation space. The central hole design with surrounding copper ring and brush contact maximizes space efficiency.

Key Features
  • High rotating speed capability
  • Reliable contact with lightweight construction
  • Exceptionally low physical noise operation
  • Continuous 360° rotation for power and signal transmission
  • Stable connection without interference or drops
Product Advantages
  • Pre-configured photoelectric encoder option
  • Available with solid or hollow shaft configurations
  • Fast delivery times
  • Custom engineering solutions available
Technical Specifications
Electrical Specifications Mechanical Specifications
Circuits 5 circuits × 1A Working Speed 0-150 rpm
Working Voltage 24V Contact Material Nobel Metal
Dielectric Strength ≥300V@50Hz Housing Material FR-4
Insulation 100MΩ@100VDC Wire Length Stator/Rotor: 300mm each
Environmental Specifications Additional Information
Temperature Range -20°C to +60°C Installation Method PCB board mounts to customer's flange
Humidity ≤60% RH Inner Diameter Φ40mm
Industrial Applications
  • Packaging and wrapping machinery
  • Semiconductor handling systems
  • Industrial automation equipment
  • Exhibit display machinery
  • Medical diagnostic equipment
  • Rotary index tables
  • Process control systems
