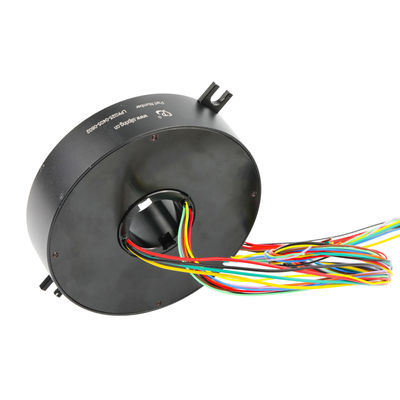

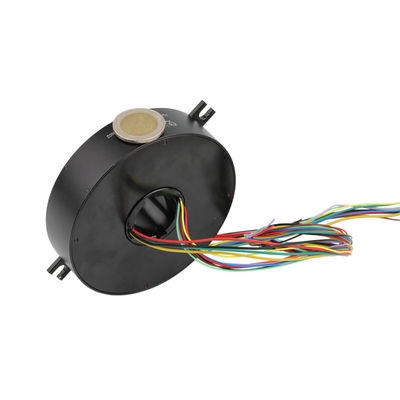

4/8 Circuits Pancake Slip Ring with 220VDC/AC Voltage Rating and 5A/2A Current Rating
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| devreler | 4/8 devre | Voltaj derecesi | 220VDC/AC veya üzeri |
|---|---|---|---|
| Mevcut Derecelendirme | Devre başına 5A/2A | Temas malzemesi | Değerli metal |
| Çalışma hızı | 0~50rpm | Dielektrik mukavemet | ≥1000V@50Hz(Akım) ≥500V@50Hz(sinyal) |
| Yalıtım direnci | 500MΩ@500VDC(Akım) 100MΩ@300VDC(sinyal) | Tel uzunluğu | Stator Teli:300mm Rotor Teli:300mm |
| Çalışma Sıcaklığı | -20 ° C ~+60 ° C | Nem | ≤60% bağıl nem |
| IP Derecelendirmesi | IP54 | Konut malzemesi | Alüminyum Alaşımının Oksidasyon Siyahı |
| Kalınlık | 6 mm | İletişim Türü | Nobel Metali |
| Kurulum yöntemi | Stator, müşteri tarafından sağlanan mile sabitlenmiştir | ||
| Vurgulamak | 4/8 Circuits Pancake Slip Ring,220VDC/AC Voltage Rating Slip Ring,5A/2A Current Rating Pancake Slip Ring |
||
Ürün Açıklaması
Wide Range Temperature Working Pancake Slip Ring Electrical Contacts and Contact Materials
Bargain Price Only in Alibaba
The LPK series is a group of Pancake Slip Rings manufactured by JINPAT with thickness as small as 6mm. Designed exclusively for rotation systems with limited vertical installation space, these slip rings feature copper ring and brush contacts surrounding a central hole for maximum space efficiency.
Key Features
- High rotating speed capability
- Reliable contact with lightweight design
- Extremely low physical noise operation
- Continuous 360° rotation for power and signal transmission
- No interference or connection drop during operation
Product Advantages
- Ready-made photoelectric encoder option
- Choice of solid or hollow shafts
- Rapid delivery available
- Custom solutions tailored to your needs
Technical Specifications
| Electronic & Electrical | Mechanical | ||
|---|---|---|---|
| Circuits | 4 circuits × 5A / 8 circuits × 2A | Working Speed | 0-50rpm |
| Working Voltage | 220VDC/AC | Contact | Nobel Metal |
| Dielectric Strength | ≥1000V@50Hz (Current) ≥500V@50Hz (Signal) | Housing | Oxidation Black of Aluminum Alloy |
| Insulation | 500MΩ@500VDC (Current) 100MΩ@300VDC (Signal) | Wire Length | Stator Wire: 300mm / Rotor Wire: 300mm |
| Environment | Remarks | ||
| Temperature | -20°C to +60°C | Installation Method | Stator fixed on customer-provided spindle |
| Humidity | ≤60%RH | ||
| IP Rating | IP54 | ||
Main Applications
- Packaging and wrapping machinery
- Semiconductor handling systems
- Industrial machinery
- Exhibit display machinery
- Medical equipment
- Rotary index tables
- Process control equipment
Company Advantages
- 12,000+ square meter facility with 500+ employees
- National High and New Technology award recipient with 69 patents
- Global partnerships with renowned enterprises
- 10,000+ successful designs across civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for diverse equipment requirements
- Fast delivery service
Frequently Asked Questions
What do we do?
We specialize in developing, designing, and manufacturing high quality slip rings, offering comprehensive solutions for rotating systems.
What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It enhances mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires in movable joints.
What kinds of slip rings do we offer?
- Electrical Slip Rings (capsule, through-bore, miniature)
- Signal Slip Rings (USB 2.0/3.0, fiber optic rotary joints, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and current per circuit, operating speed, and mounting type. For custom solutions or selection assistance, contact our engineering team.
Do you offer custom slip rings?
Yes, our engineers develop perfect custom solutions tailored to your specific requirements. Contact us to discuss your application needs.
