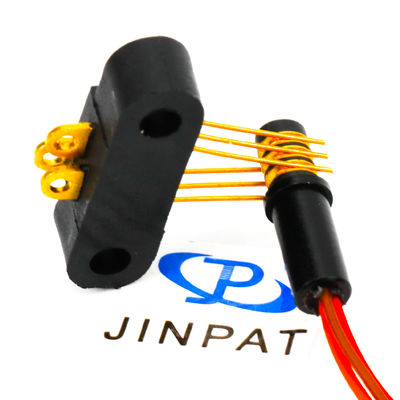

3 Circuits 300 Rpm 240 VAC Separate Slip Ring for Machinery Equipment Electrical Contacts

  • 3 Circuits 300 Rpm 240 VAC Separate Slip Ring for Machinery Equipment Electrical Contacts
Menşe yeri Guangdong, Çin
Marka adı JINPAT
Model numarası LPS-03
Min sipariş miktarı 1
Fiyat $15

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Devre numarası 3 Mevcut Derecelendirme 2a
Gerilim 240 VAC Çalışma hızı 0~300 dev/dak
Çalışma sıcaklığı -20~+60℃ Stil Kapsül Kayma Halkası
Elektrik gürültüsü ≤70mΩ Temas malzemesi Değerli metal
Tel boyutu 32# gümüş kaplamalı bakır Teflon UL Kurşun tel uzunluğu rotor:250mm; Statör: 250mm
Tip Elektronik Aksesuarlar Döner Arayüz Altın kontaklar
Tel Rengi Renk kodlu Kurulum Kurulumu Kolay
Alan Gereksinimi Küçük alan için uygun
Vurgulamak

3 Circuits Separate Slip Ring

,

300 Rpm Electrical Slip Ring

,

240 VAC Rotary Slip Ring
Ürün Açıklaması
Separate Slip Ring with 3 Circuits 300 Rpm Working Speed for Machinery Equipment Electrical Contacts and Contact Materials
Industrial Slip Ring Description

The LPS-03 separate slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating components. This standard unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.

Key Features
  • Separate stator and rotor design
  • Capable of transmitting power and weak signals
  • Optional stator connection configurations
  • Low resistance for efficient operation
  • Simple installation process
  • Compact design for space-constrained applications
Product Advantages
  • Extended operational lifespan
  • Fast delivery options
  • Customization capabilities
Technical Specifications
Circuits 3
Current Rating 2A
Voltage 240 VAC
Electrical Noise ≤70mΩ
Working Speed 0-300 RPM
Contact Material Precious metal
Wire Specifications 32# silver plated copper Teflon UL
Lead Wire Length Rotor: 250mm; Stator: 250mm
Operating Temperature -20°C to +60°C
Applications
  • Electrical devices
  • Medical facilities
  • Miniature robotics
  • LED lighting systems
  • Compact medical equipment
  • Miniature electronic devices
Product Visualization
3 Circuits 300 Rpm 240 VAC Separate Slip Ring for Machinery Equipment Electrical Contacts 0
3 Circuits 300 Rpm 240 VAC Separate Slip Ring for Machinery Equipment Electrical Contacts 1
Manufacturer Profile

JINPAT Electronics, established in 1996, is a leading manufacturer specializing in industrial slip rings. The company offers a comprehensive range of standard products including Capsule Slip Rings, Through-bore Slip Rings, Large-current Slip Rings, and Fiber Optic Slip Rings, with full customization capabilities for specialized applications.

All products are manufactured under strict quality control standards, certified by ISO9001:2008 and ISO14001:2015 quality management systems.

3 Circuits 300 Rpm 240 VAC Separate Slip Ring for Machinery Equipment Electrical Contacts 2
3 Circuits 300 Rpm 240 VAC Separate Slip Ring for Machinery Equipment Electrical Contacts 3
3 Circuits 300 Rpm 240 VAC Separate Slip Ring for Machinery Equipment Electrical Contacts 4
3 Circuits 300 Rpm 240 VAC Separate Slip Ring for Machinery Equipment Electrical Contacts 5
