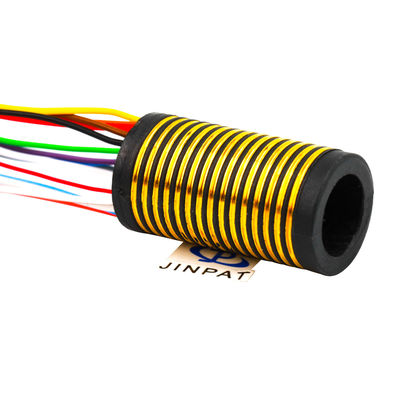

15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission

  • 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission
Menşe yeri Guangdong, Çin
Marka adı JINPAT
Model numarası LPS-15
Min sipariş miktarı 1
Fiyat $100

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Maksimum hız 100 rpm Devre sayısı 15
Gerilim 240 VAC/DC Mevcut Derecelendirme 2a
Sıcaklık Aralığı -20 ℃ ila +60 ℃ Çalışma nemi %60 bağıl nem veya daha yüksek
Temas malzemesi Altından Altına Kurşun Boyutu 28 # gümüş kaplama bakır
Kurşun Uzunluğu Standart 250 mm (9,843 inç) Dielektrik mukavemet ≥200 VAC @50Hz, her devre arasında
Gövde Malzemesi Mühendislik plastik Yalıtım direnci 50 MΩ @ 500 VDC
Elektrik gürültüsü ≤35mΩ Çalışma hızı 0-100 rpm
Bant genişliği transferi Yüksek
Vurgulamak

15 Circuit Slip Ring

,

100 rpm Separate Slip Ring

,

250mm Lead Length Rotary Electrical Connector
Ürün Açıklaması
15 Circuit Smooth Running Low Electrical Noise Separate Slip Ring
Gold to Gold Contact for Electrical Contacts Contact Materials

Separate slip ring consists of two parts: rotor and brush block. The rotor part can have a through bore type, making it suitable for space-limited installations. This slip ring can use pins instead of lead wires to handle larger currents.

The LPS-15 is a standard unit featuring gold contacts at the rotary interface with color-coded lead wires on both stator and rotor for simplified electrical connections.

Key Advantages
  • 250mm standard lead length
  • Gold to gold contact materials for extended lifespan
  • Flexible, color-coded, silver-plated wiring
  • Capable of transmitting both power and signal data
  • High bandwidth transfer capability
Primary Applications
  • Indexing tables
  • CCTV pan/tilt camera mounts
  • Robotics and rotary sensors
  • Emergency illumination equipment
  • Exhibit and display equipment
  • Medical equipment
  • Aviation, military, and instrumentation
  • Miniature wire-rolling machines
Customization Options
  • Circuits & current capacity
  • Operational speed
  • Dimensions
  • Lead wire length
  • Contact and housing materials
Technical Specifications
Parameter Specification
Operating Speed 0-100 rpm
Number of Circuits 15
Voltage 240 VAC/DC
Current Rating 2A
Temperature Range -20℃ to +60℃
Working Humidity 60%RH or higher
Contact Material Gold to Gold
Lead Size 28 AWG silver-plated copper
Lead Length Standard 250 mm (9.843 inch)
Dielectric Strength ≥200 VAC @50Hz between circuits
Body Material Engineering plastic
Insulation Resistance 50 MΩ @ 500 VDC
Electrical Noise ≤35mΩ
15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 0 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 1 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 2 15 Circuit 100 rpm Separate Slip Ring with 250mm Lead Length for Smooth Electrical Transmission 3
