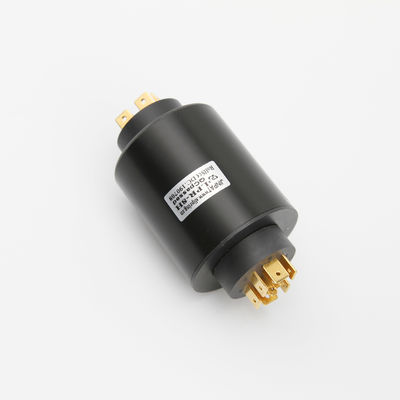

360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery

  • 360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery
Menşe yeri Çin
Marka adı JINPAT
Sertifika ISO/CE/RoHS/UL
Model numarası LPR-8H
Min sipariş miktarı 10 adet
Fiyat negotiable

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Devre numarası 8 Mevcut Derecelendirme 2 kapı*5A, 6 kapı*20A
Gerilim 240 VAC Çalışma hızı 0~300 dev/dak
Çalışma sıcaklığı -20~+60℃ Dielektrik mukavemet Devreler arasında 500V@50Hz
Yalıtım 100MΩ@500VDC Elektrik gürültüsü ≤15mΩ
Temas malzemesi Değerli metal Konut malzemesi Mühendislik plastik
Tel tipi Gümüş kaplama pim Koruma sınıfı IP54
Dönme açısı 360 derece Bağlantı Türü pim kayma halkası
Sürtünme kuvveti Düşük
Vurgulamak

360 Degree Rotation Slip Ring

,

8 Circuit Rotary Joint

,

240VAC Swivel Joint
Ürün Açıklaması
360 Degree Rotation Swivel Joint 8 Circuit 240VAC 5A/20A 0~300 RPM Industrial Machinery Cable Reel Slip Ring
Bargain Price Only in Alibaba
Rotary Joint Slip Ring Description
The LPR series is a group of Pin Slip Rings designed and manufactured by JINPAT Electronics. This unit features an exquisite design that replaces wires with pins for connections, complying with RoHS standards. Its convenient installation makes it ideal for systems requiring power transmission in compact spaces with plug-and-play functionality.
The LPR-8H pin connection slip ring is suitable for any electromechanical system needing continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit uses gold contacts at the rotary interface and color-coded lead wires on both stator and rotor for simplified electrical connections.
Rotary Joint Slip Ring Features
  • Mercury-free unit with environmentally friendly design
  • 360° rotating transmission capability
  • Large current-carrying capacity
  • No interference or data package loss
  • Extremely low electrical noise and friction force
  • Quick connection with spade terminal
Rotary Joint Slip Ring Advantages
  • Optional circuit number configurations
  • Long service life
  • Maintenance free operation
Specifications
Circuits 8
Current Rating 2ckt*5A, 6ckt*20A
Voltage 240 VAC
Dielectric Strength 500V@50Hz between circuits
Insulation 100MΩ@500VDC
Electrical Noise ≤15mΩ
Working Speed 0~300 RPM
Contact Precious metal
Housing Engineering plastic
Wire Size Silver plated pin
Working Temperature -20~+60℃
Protection Grade IP54
Rotary Joint Slip Ring Main Applications
  • Electric devices
  • CT machines
  • Mini robots
  • LED industry
  • Mini-type devices
Outline Drawing
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 0
Product Display
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 1
Company Introduction
JINPAT Electronics, founded in 1996, is a leading manufacturer of slip rings committed to developing industrial slip rings for various applications. Our product range includes Capsule Slip Rings, Through-bore Slip Rings, Large-current Slip Rings, Coax Rotary Joints, Fiber Optic Slip Rings, Separate Slip Rings, and Pin Slip Rings as standard off-the-shelf units. We also support custom designs for specialized applications including Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, and RS422 interfaces. All products meet our quality management system certified by IS09001:2008/ISO14001:2015.
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 2
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 3
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 4
360 Degree Rotation 8 Circuit 240VAC Slip Ring Rotary Joint for Industrial Machinery 5
