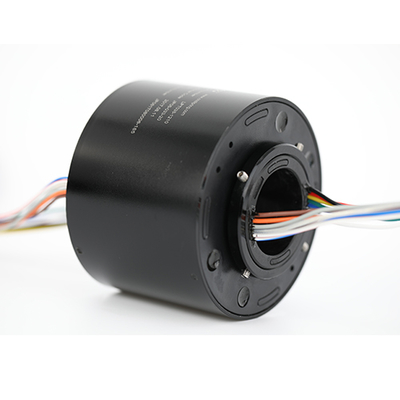

50mm Through Hole Slip Ring 6 Circuits 5A 300rpm

  • 50mm Through Hole Slip Ring 6 Circuits 5A 300rpm
Menşe yeri Guangdong, Çin
Marka adı JINPAT
Model numarası LPT050-0605
Min sipariş miktarı 1
Fiyat $112.90-136

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Delik Boyutu 50 mm devreler 6
Devre başına akım 5a Çalışma hızı 0-300rpm
Voltaj derecesi 380VAC/DC veya üstü Temas malzemesi Değerli metal
Dış Çap 119 mm Çalışma sıcaklığı -10 ~ +50
Çalışma nemi %60 bağıl nem veya daha yüksek Dielektrik mukavemet Her devre arasında ≥200V@50Hz
Yalıtım direnci 50MΩ@ 500VDC Elektrik gürültüsü 30mΩ Min
Kurşun tel uzunluğu 300mm (11.811inch) Konut malzemesi Alüminyum alaşımı
Tork ≤9.25 g*m
Vurgulamak

50mm through hole slip ring

,

6 circuits slip ring 5A

,

300rpm slip ring with warranty
Ürün Açıklaması
High Performance Slip Ring - 50mm Hole Size, 6 Circuit, 5A

The LPT050-0605 slip ring features 6 connections with 5A per ring. Its 50mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for concentric shaft mounting. Utilizing advanced fiber brush technology, this slip ring offers superior performance with multiple contact points per brush bundle, low contact force, and minimal wear rates.

Key Features
  • 50mm through-bore design
  • Compact 119mm outside diameter
  • Modular configuration options
  • Handles up to 20-50 amp circuits
  • Operates at speeds up to 300 rpm continuous
  • Steel bearings and machined shaft/housing for harsh environments
  • Standard collar mounting (flange optional)
  • Multiple lead exit options available
  • Standard silver-plated rings (gold optional)
  • Sealed unit for protection
  • Continuous 360° rotation capability
Technical Specifications
Parameter Specification
Circuits 1-24 circuits
Operating Speed 0-300rpm
Working Temperature -10°C to +50°C
Working Humidity 60%RH or higher
Electrical Specifications
Voltage Rating 380VAC/DC or higher
Current Rating 2A/5A/10A/15A per circuit
Dielectric Strength ≥200V@50Hz between each circuit
Insulation Resistance 50MΩ@ 500VDC
Electrical Noise 30mΩ Min
Mechanical Specifications
Contact Material Precious metal
Lead Wire Length Standard 300mm (11.811inch)
Housing Material Aluminum alloy
Torque ≤9.25 g*m (reference value)
Protection IP50
50mm Through Hole Slip Ring 6 Circuits 5A 300rpm 0
Performance Advantages
  • Efficient transfer of control and data signals
  • Fiber brush technology enables maintenance-free operation (no lubrication required)
  • Modular design allows customization through standard manufacturing techniques
  • Custom configurations available for specific application requirements
Typical Applications
  • Packaging and wrapping machinery
  • Semiconductor handling systems
  • Industrial automation equipment
  • Exhibit display machinery
  • Medical diagnostic equipment
  • Rotary index tables
  • Process control systems
  • Emergency lighting systems
  • Robotics and palletizing machines
  • Heavy equipment turrets and cable reels
50mm Through Hole Slip Ring 6 Circuits 5A 300rpm 1 50mm Through Hole Slip Ring 6 Circuits 5A 300rpm 2
Manufacturer Information
  • 12,000+ square meter production facility
  • 500+ skilled employees
  • Recognized as National High and New Technology enterprise
  • Holder of 69 technology patents
  • Global partnerships with leading industrial firms
  • 10,000+ successful designs across multiple industries
  • Established in 1996 with 20+ years of R&D experience
  • Custom engineering solutions available
  • Fast delivery on standard products
50mm Through Hole Slip Ring 6 Circuits 5A 300rpm 3 50mm Through Hole Slip Ring 6 Circuits 5A 300rpm 4 50mm Through Hole Slip Ring 6 Circuits 5A 300rpm 5 50mm Through Hole Slip Ring 6 Circuits 5A 300rpm 6
Frequently Asked Questions
What is a slip ring?

A slip ring is an electromechanical device that enables the transmission of power and electrical signals between stationary and rotating structures. It eliminates the need for dangling wires in rotating systems, improving mechanical performance and simplifying operation.

What types of slip rings do you provide?
  • Electrical slip rings (capsule, through-bore, miniature)
  • Signal slip rings (USB, fiber optic, high frequency)
  • Pneumatic/hydraulic rotary unions
  • Custom engineered solutions
  • High-volume production models
How do I select the right slip ring?

Selection requires details about your application's operating parameters including circuit count, voltage/current requirements, operating speed, and mounting configuration. Our engineering team can assist with proper selection or custom design.

Do you provide custom slip ring solutions?

Yes, our engineering team can develop custom solutions tailored to your specific requirements. We offer free consultation and design services for specialized applications.
