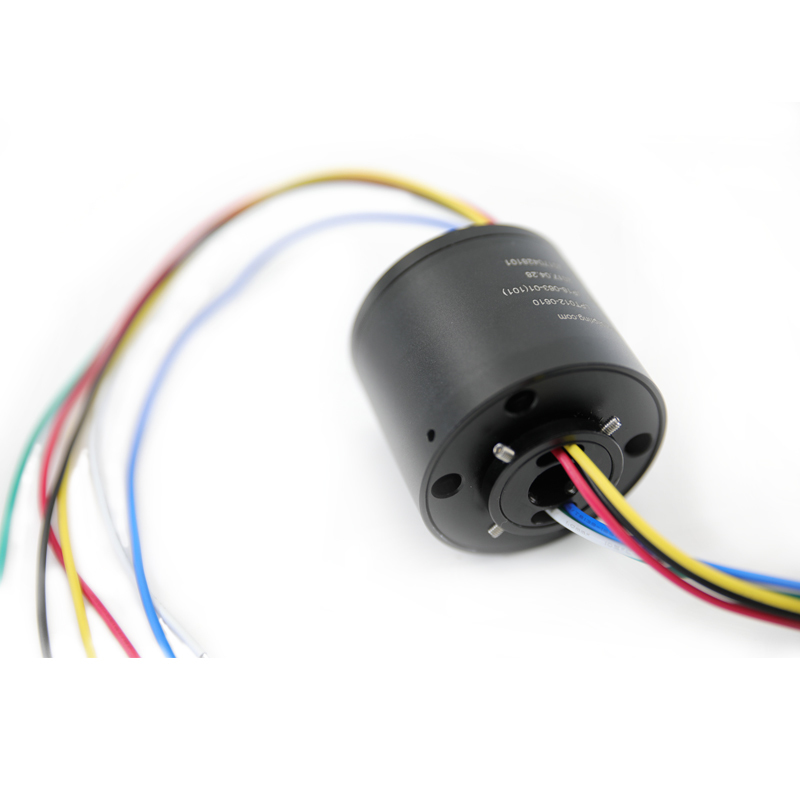

6 Circuit 10A 240VAC Through Hole Slip Ring ID12.7mm
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Devre numarası | 6 | Mevcut Derecelendirme | 10a |
|---|---|---|---|
| Gerilim | 240VAC | Çalışma hızı | 0~300 dev/dak |
| Çalışma sıcaklığı | -20~+60℃ | Dielektrik mukavemet | Devreler arasında ≥1000V@50Hz |
| Yalıtım direnci | ≥500MΩ@500VDC | Delik | 12,7 mm |
| Temas malzemesi | Değerli metal | Konut malzemesi | Alüminyum alaşımı |
| Tel uzunluğu | Stator: 300mm; Rotor: 300mm | Nem | ≤60% bağıl nem |
| Koruma sınıfı | IP50 | Ethernet hızı | 10Mbps/100Mbps/1000Mbps |
| USB VERSİYONU | USB2.0 | ||
| Vurgulamak | 6 circuit through hole slip ring,10A 240VAC slip ring,ID12.7mm through hole slip ring |
||
Ürün Açıklaması
Standard Through Hole Slip Ring - ID12.7mm 6 Circuits 10A
Designed for textile machinery and customizable to meet specific requirements.
Product Description
Bargain Price Only in Alibaba
The LPT series through-bore slip rings feature a center hole that can accommodate drive shafts or gas-liquid passages. These versatile components can integrate high frequency, fiber, encoder, waveguide, gas and liquid joints. Advanced fiber brush technology ensures reliable contact with minimal friction.
Key Features
- Transmits both analog and digital signals
- Mixed transmission of power and signals including:
- Ethernet (10Mbps/100Mbps/1000Mbps)
- Industrial Ethernet (EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP)
- HD video (SDI, LVDS)
- Serial communication (RS232, RS485, RS422)
- USB2.0
- Industrial Fieldbus (CANBus, ProfiBus, InterBus, CC-Link, DeviceNet)
- Sensor signals (thermal resistance, thermocouple, strain gauge)
- Long service life with maintenance-free operation
- Easy installation
Applications
Ideal for use in:
- Industrial automation equipment
- Medical equipment
- Wind power equipment
- Test and exhibition display equipment
- Robotics
- Turntable equipment
- Amusement equipment
- High-speed railway equipment
- Packaging machinery
- Ship offshore equipment
- Construction machinery
Technical Specifications
| Parameter | Value |
|---|---|
| Circuits | 6 |
| Current Rating | 10A |
| Voltage | 240 V AC/DC |
| Dielectric Strength | ≥1000V@50Hz between circuits |
| Insulation | ≥500MΩ@500VDC |
| Hole Diameter | 12.7mm |
| Working Speed | 0~300 RPM |
| Contact Material | Precious metal |
| Housing Material | Aluminum alloy |
| Wire Length | Stator: 300mm; Rotor: 300mm |
| Working Temperature | -20~+60℃ |
| Humidity | ≤60%RH |
| Protection Grade | IP50 |
Outline Drawing
Product Display
Our Advantages
- 12,000 square meter facility with over 500 employees
- Recognized as "National High and New Technology" company with 69 patents
- Long-term partnerships with global enterprises and worldwide agents
- Over 10,000 successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for various equipment requirements
- Fast delivery times
Typical Application
Frequently Asked Questions
1. What do we do?
We specialize in developing, designing, and manufacturing high quality slip rings, offering comprehensive solutions for rotating systems.
We specialize in developing, designing, and manufacturing high quality slip rings, offering comprehensive solutions for rotating systems.
2. What is a slip ring?
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It enhances mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires in movable joints.
A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It enhances mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires in movable joints.
3. What kinds of slip rings do we provide?
Our product range includes:
Our product range includes:
- Electrical Slip Rings (capsule, through-hole, miniature)
- Signal Slip Rings (USB2.0/USB3.0, fiber optic rotary joints, high frequency)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
4. How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom or modified solutions.
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom or modified solutions.
5. Do you provide custom slip rings?
Yes, our engineering team develops perfect solutions for specific requirements. Contact us to get started.
Yes, our engineering team develops perfect solutions for specific requirements. Contact us to get started.
