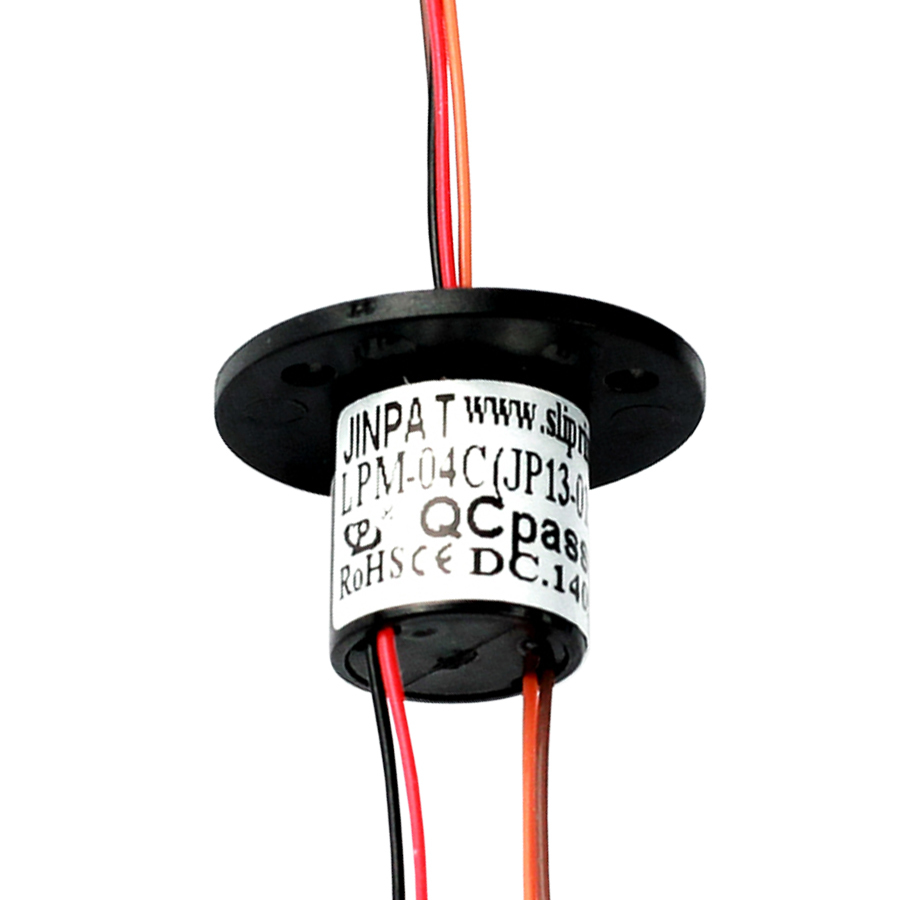

4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V

  • 4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V
Menşe yeri Guangdong, Çin
Marka adı JINPAT
Model numarası LPM-04C
Min sipariş miktarı 1
Fiyat $15

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Devre sayısı 4 Çalışma hızı 200rpm maks.
Gerilim 240VDC/AC Mevcut Derecelendirme Tel başına 2a/4a
Konut malzemesi Alüminyum alaşımı Koruma sınıfı IP65
Temas malzemesi Gümüş ila gümüş Çalışma sıcaklığı -30~+80°C
Maksimum güç kaynağı Devre başına 600A Sinyal kanalları İsteğe bağlı
Kablo bağlantısı İsteğe bağlı Bakım Ücretsiz 2 yıl
Şok geçirmez tasarım Evet Düşük sıcaklık direnci Evet
Kodlayıcı uyumluluğu Mutlak kodlayıcı mevcut
Vurgulamak

miniature slip ring for robot arm

,

4 circuit slip ring 240V

,

rotary slip ring 200RPM
Ürün Açıklaması
Small Size Capsule Slip Ring With 4 Circuits Digital Signals Transmission, Low Torque
Product Specifications
Attribute Value
Type Electronic Accessories, miniature slip ring
Number of circuits 4
Working speed 200rpm max.
Voltage 240VDC/AC
Current rating 2A/4A per wire
Feature Robot arm, Remote Control
Product Description

A slip ring is a rotary coupling used to transfer electric current from a stationary unit to a rotating unit. This is accomplished by either:

  1. Holding the center core stationary while the brushes and housing rotate around it.
  2. Holding the brushes and housing stationary while the center core is allowed to rotate.
Key Features
  • Compact structure with flexible installation
  • Reliable and durable for long-term operation
  • Aluminum alloy housing with IP65 protection grade - suitable for dusty environments
  • Alloy brush with precious contact material (silver to silver) for excellent conductivity and low signal loss
  • Shockproof design with operating temperature range: -30°C to +80°C
  • Compatible with absolute encoders and potentiometers
  • Power supply up to 600 amperes per circuit with optional signal channels and wire connection methods
  • Short delivery time with available customized solutions
  • Long lifespan with maintenance-free operation for 2 years
Product Benefits
  • Compact size for space-constrained applications
  • Low friction operation
  • Long life and high reliability
  • Quick delivery and cost-effective solution
  • Easily customizable to specific requirements
  • CE and RoHS compliant
Manufacturer Advantages

Welcome to JINPAT Electronics - Providing free custom slip ring solutions to propel your technology forward.

  • 12,000+ square meter facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise with 69 patents
  • Global partnerships with renowned enterprises and worldwide agents
  • 10,000+ successful designs across civil, military, commercial, and industrial applications
  • Established in 1996 with over 20 years of production and R&D experience
  • Free custom solutions adaptable to various equipment requirements
  • Fast delivery times
4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V 0
Typical Applications
4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V 1
Company Information
4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V 2 4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V 3 4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V 4 4 Circuit Miniature Slip Ring for Robot Arm 200RPM 240V 5
