6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment

  • 6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment
Menşe yeri Guangdong, Çin
Marka adı JINPAT
Model numarası LPM-06B
Min sipariş miktarı 1
Fiyat $10

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Devre numarası 6 Mevcut Derecelendirme 1A
Gerilim 240VAC Dielektrik mukavemet ≥500V@50Hz devreler arasında
Yalıtım 100MΩ@500VDC Elektrik gürültüsü ≤15mΩ
Çalışma hızı 0~300 dev/dak Temas malzemesi Değerli metal
Tel boyutu 30# Gümüş Kaplama Bakır Ul, Teflon Kurşun tel uzunluğu rotor:250mm; Statör: 250mm
Çalışma sıcaklığı -20~+60℃ Nem ≤60% bağıl nem
Koruma sınıfı IP54 Stil Kapsül Kayma Halkası
İletişim Türü Altın kontaklar
Vurgulamak

6 circuit mini slip ring

,

240VAC high precision slip ring

,

1A rotary slip ring
Ürün Açıklaması
Slip Ring VW 6 Wires with 1A Current & Low Electrical Noise
High Precision Mini Slip Ring for Industrial Applications
Key Features
  • 6 circuits with 1A current rating
  • Low electrical noise (≤15mΩ)
  • Gold contacts at rotary interface
  • Color-coded lead wires for easy installation
  • Compact capsule slip ring design
Product Specifications
Attribute Value
Type Electronic Accessories
Circuit Number 6
Current Rating 1A
Voltage 240VAC
Working Speed 0~300 rpm
Working Temperature -20~+60℃
Style Capsule slip ring
Dielectric Strength ≥500V@50Hz between circuits
Insulation 100MΩ@500VDC
Wire Size 30# silver plated copper UL, Teflon
Lead Wire Length Rotor:250mm; Stator:250mm
Humidity ≤60%RH
Protection Grade IP54
Product Description

The LPM-06B miniature slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating parts. This standard off-the-shelf unit features gold contacts at the rotary interface and color-coded lead wires for simplified electrical connections.

Applications
  • Electric devices
  • Medical facilities
  • Industrial machinery
  • LED industry
  • Medical equipment
  • High-precision facilities
Product Images

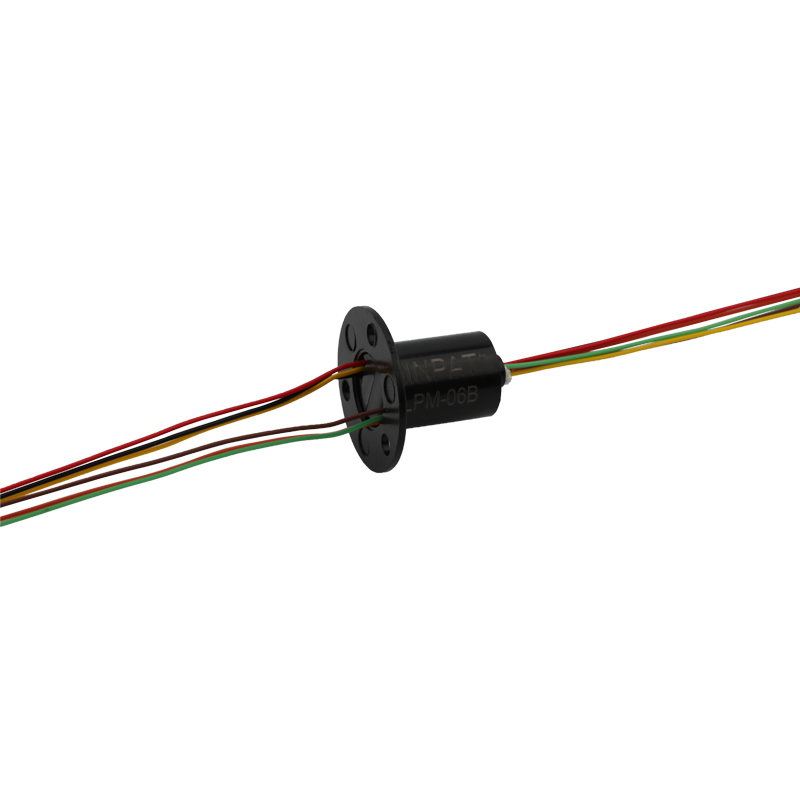

6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment 0 6 Circuit 1A 240VAC Mini Slip Ring for High Precision Equipment 1
Manufacturer Advantages
  • 12,000 square meter plant with 500+ employees
  • National High and New Technology award recipient with 69 patents
  • 20+ years of production and R&D experience since 1996
  • 10,000+ successful designs for civil, military, commercial and industrial applications
  • Free custom slip ring solutions available
  • Fast delivery times
Frequently Asked Questions
What is a slip ring?

A slip ring is an electromechanical device that allows transmission of power and electrical signals from a stationary to a rotating structure. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires.

How do I choose a slip ring?

Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom solutions.
