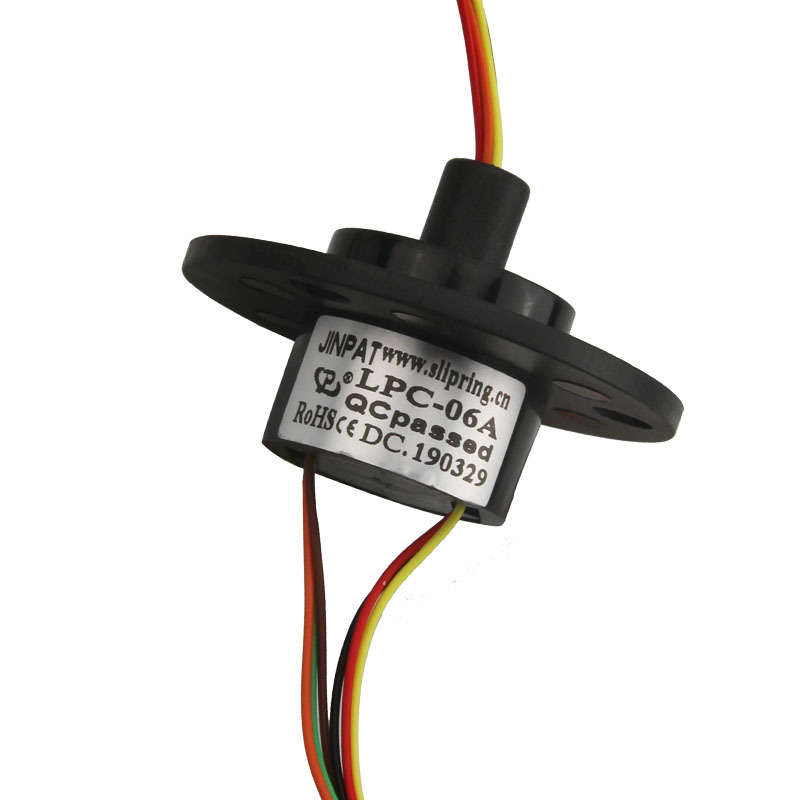

6 Channel Capsule Slip Ring 2A Current for Medical Equipment

  • 6 Channel Capsule Slip Ring 2A Current for Medical Equipment
Menşe yeri Guangdong, Çin
Marka adı JINPAT
Model numarası LPC-06A
Min sipariş miktarı 1
Fiyat $14.50

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Mevcut Derecelendirme Devre başına 2a veya daha yüksek Çalışma hızı 0-300rpm
Elektrik gürültüsü Min1moΩ Tork ≤0,88 gram
devreler 6 Gerilim 240VAC
Dielektrik mukavemet ≥500V@50Hz devreler arasında Yalıtım direnci 100MΩ@500VDC
Koruma sınıfı IP40 veya daha yüksek Tel uzunluğu 250mm(isteğe bağlı)
Tel boyutu 28# Gümüş Kaplama Bakır Ul, Teflon Kurşun tel uzunluğu rotor:250mm; Statör: 250mm
Çalışma sıcaklığı -20~+60℃ Nem %60 bağıl nem veya daha yüksek
Dış çap 22mm ~ 54mm
Vurgulamak

6 channel slip ring for medical equipment

,

2A current slip ring

,

rotary slip ring with warranty
Ürün Açıklaması
Capsule Slip Ring - 2A Current & 6 Channel High Life for Biochemical Analyzer
Product Attributes
Attribute Value
Type Electronic Accessories
Electrical Noise Min 1mΩ
Torque ≤0.88g.m
Current Rating 2A per circuit or higher
Working Speed 0-300rpm
Product Description
Bargain Price Only in Alibaba

Standard middle-sized Capsule Slip Ring/Flat Slip Ring is capable of integrating over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, offering high precision, compact design, and easy assembly. Gold-to-gold contact ensures low resistance and extended service life. Capable of integrating various signals including Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI.

Specifications
Circuits 6
Current Rating 2A
Voltage 240VAC
Dielectric Strength ≥500V@50Hz between circuits
Insulation 100MΩ@500VDC
Protection IP40 or higher
Working Speed 0~300 RPM
Wire Length 250mm (Optional)
Wire Size 28# silver plated copper UL, Teflon
Lead Wire Length Rotor:250mm; Stator:250mm
Working Temperature -20~+60℃
Humidity 60%RH or higher
Protection Grade IP40
Industrial Applications
  • Electric devices
  • Motor equipment
  • Industrial machinery
  • LED industry
  • Medical equipment
  • Process control equipment
  • Monitoring systems
  • Electrical testing equipment
  • Military rotary table
  • Robotics
  • Rotating platform
  • Displaying and demonstrating equipment
  • Instruments and meters
Key Features
  • High durability and long service life
  • Very low contact resistance
  • Compatible with data bus protocols
  • Smooth operation and high stability
  • Low torque operation
  • Supports various types of data signals
  • Compact and space-saving structure
Product Visuals
6 Channel Capsule Slip Ring 2A Current for Medical Equipment 0 6 Channel Capsule Slip Ring 2A Current for Medical Equipment 1
Company Advantages
  • 12,000 square meter facility with 500+ employees
  • National High and New Technology award recipient with 69 patents
  • Global partnerships with renowned enterprises
  • Over 10,000 successful designs across civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Free custom slip ring solutions for various equipment
  • Fast delivery service
6 Channel Capsule Slip Ring 2A Current for Medical Equipment 2 6 Channel Capsule Slip Ring 2A Current for Medical Equipment 3 6 Channel Capsule Slip Ring 2A Current for Medical Equipment 4 6 Channel Capsule Slip Ring 2A Current for Medical Equipment 5
Frequently Asked Questions
What do we do?

We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.

What is a slip ring?

A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires in movable joints.

What kinds of slip rings do we offer?
  • Electrical Slip Rings (capsule, through-hole, miniature)
  • Signal Slip Rings (USB, fiber optic, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?

Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance in selection or custom solutions.

Do you offer custom slip rings?

Yes, our engineers will develop perfect solutions for your specific needs. Contact us to discuss custom requirements.
