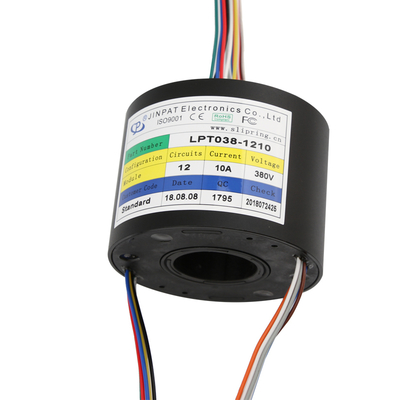

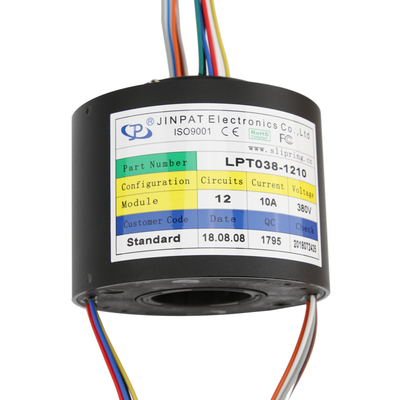

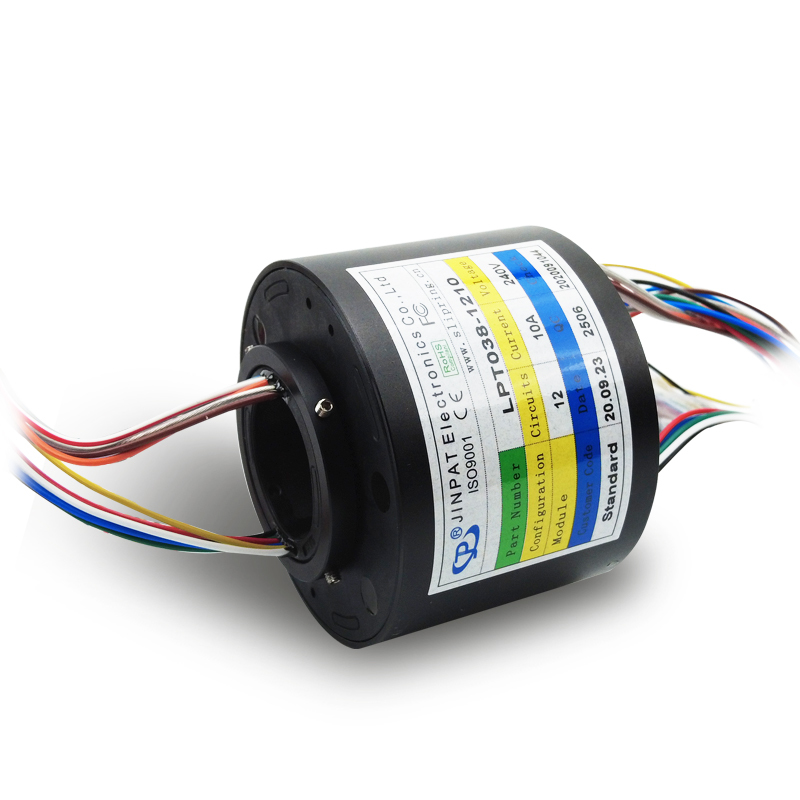

38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal

  • 38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal
  • 38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal
  • 38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal
Place of Origin Guangdong, China
Marka adı JINPAT
Model Number LPT038-1210
Minimum Order Quantity 1
Fiyat $127-153

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Hole Diameter 38.1 mm Working Speed 0~300 RPM
Circuits 12 Current Rating 10A
Voltage 240 VAC/DC Dielectric Strength ≥1000V@50Hz between circuits
Insulation Resistance ≥500MΩ@500VDC Contact Material Precious metal
Housing Material Aluminum alloy Working Temperature -20~+60℃
Humidity ≤60%RH Protection Grade IP50
Contact Type Fiber brush Max Current 10A per wire
Bearing Type Precision ball bearings
Vurgulamak

38mm hollow slip ring 12 circuit

,

hollow slip ring 10A 300RPM

,

through hole slip ring precious metal
Ürün Açıklaması
Electrical Slip Ring - Long Life 12 Circuit 10A with Hollow 38mm
Product Attributes
Type Electronic Accessories
Contact Precious metal
Hole Diameter 38.1 mm
Working Speed 0~300 RPM
Product Description

The LPT038-1210 through bore slip ring is designed for electromechanical systems requiring continuous rotation while transferring power or data between stationary and rotating structures.

This LPT038 series slip ring features a φ38.1mm bore, capable of transmitting 10A current across 12 circuits. Utilizing advanced fiber brush technology, it delivers reliable performance with stable contact and excellent conductivity.

Key Features
  • 12 circuit configuration
  • Precious metal contacts for durability
  • 10A current capacity per wire
  • Precision ball bearings for extended service life
  • Continuous operation up to 300 RPM
  • Compact, space-saving design
  • Optional sealed units available
  • Low torque operation minimizes system requirements
  • Rapid delivery available
Technical Specifications
Circuits 12
Current Rating 10A
Voltage 240 VAC/DC
Dielectric Strength ≥1000V@50Hz between circuits
Insulation ≥500MΩ@500VDC
Hole Diameter 38.1 mm
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP50
Typical Applications
  • Radar antenna systems
  • Rotary platforms
  • Heavy engineering machinery
  • Packaging equipment
  • Test and measurement systems
Outline Dimensions
38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal 0
Product Display
38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal 1
Manufacturer Advantages
  • 12,000+ square meter production facility with 500+ employees
  • Recognized as National High and New Technology enterprise with 69 patents
  • Established partnerships with global industry leaders
  • 10,000+ successful designs across civil, military, commercial and industrial applications
  • Founded in 1996 with 20+ years of R&D and manufacturing experience
  • Custom slip ring solutions available for specialized equipment requirements
  • Fast delivery options
38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal 2
Company Information
38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal 3 38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal 4 38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal 5 38mm Hollow Slip Ring 12 Circuit 10A 300RPM Precious Metal 6
