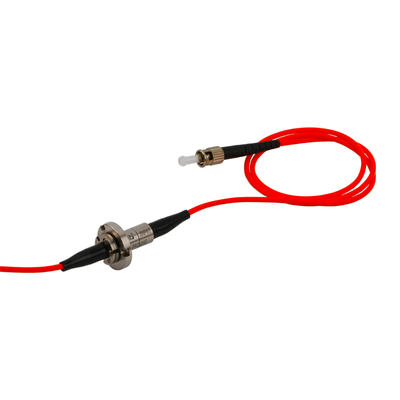

IP68 Fiber Optic Rotary Joint 2000rpm Stainless Steel FORJ
Ücretsiz numune ve kuponlar için bana ulaşın.
Naber:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Housing Material | stainless steel | Circuits | 1 |
|---|---|---|---|
| Wavelength Range | 650-1650 nm | Insertion Loss | <2dB |
| Working Speed | 2000rpm | Fiber Types | SM or MM |
| Connector Types | FC/SC/ST/LC(PC or APC) | Channel Number | 1 |
| Life Cycle | >200 million revolutions | Insertion Loss Ripple | <0.5dB |
| Weight | 40g | Return Loss | ≥40dB |
| Max Optical Power | 23dBm | Working Temperature | -45~+75℃ |
| Storage Temperature | -55~+85℃ | ||
| Vurgulamak | IP68 fiber optic rotary joint,stainless steel FORJ,2000rpm fiber optic rotary joint |
||
Ürün Açıklaması

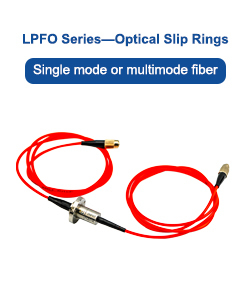

IP68 Fiber Optic Slip Ring Rotary Joint with 2000 rpm Working Speed
Product Attributes
| Attribute | Value |
|---|---|
| Type | Accessories |
| Product name | Fiber Optic Rotary Joint |
| Housing Material | Stainless steel |
| Circuits | 1 |
| Wavelength Range | 650-1650 nm |
| Insertion Loss | <2dB |
| Working Speed, max | 2000rpm |
Product Description

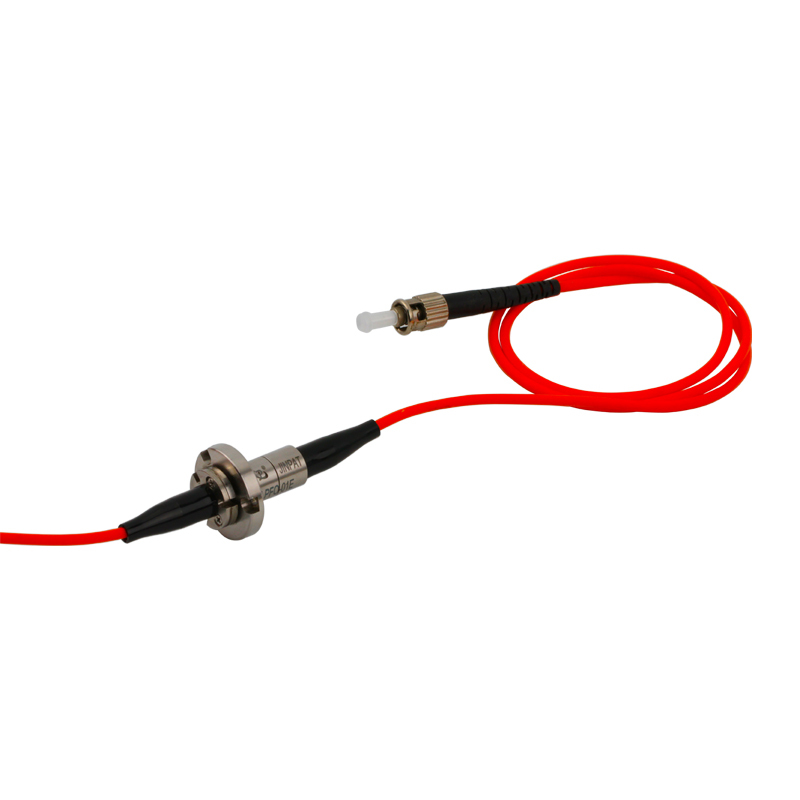

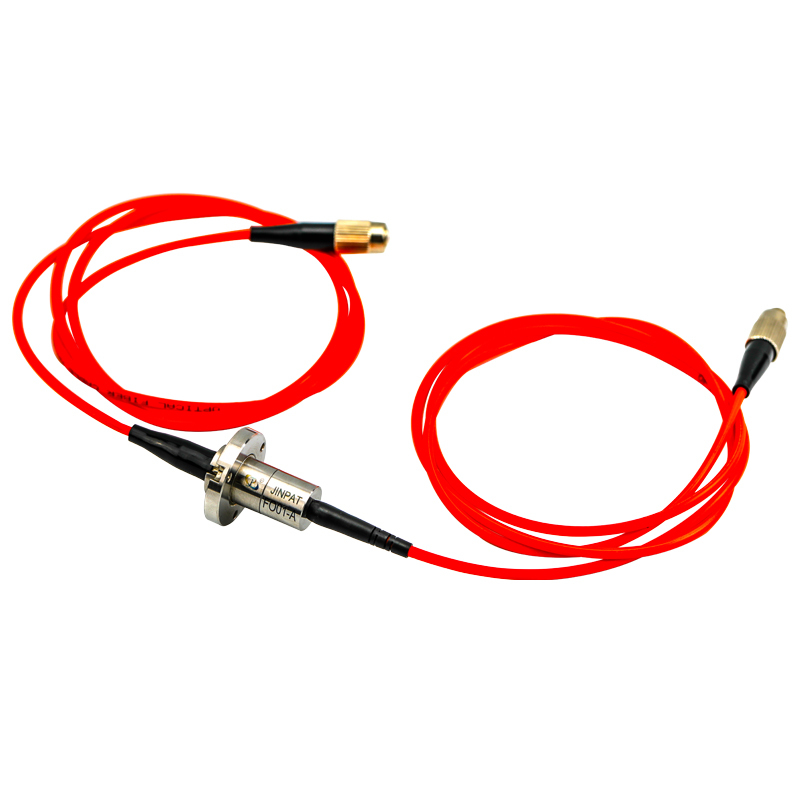

The LPFO-01E rotary joint features optic fiber as the media for data transmission. The fiber connector is designed perfectly for transmitting a large capacity of data and signal from stationary to rotating parts. It has an extremely low insertion loss but considerably large return loss. Besides, with no contact or friction, it can achieve transmission in a combination of various signals with a high bandwidth, even doubled when matched with wavelength division multiplexer.
Key Features
- Built-in interface supports quick plug in
- Low insertion loss but high return loss
- Transmission with no leakage or electromagnetic interference for long distances
- High transmitting bandwidth
- No contact or friction
- Compact and lightweight design
- Optional mode for multi-channel parts
- Various package types available
- Water and dust proof, vibration and shock resistant
- High protection level (IP68)
Product Advantages
- Long service life
- Competitive cost
- Flexible connector for fiber wire terminal
- Rapid delivery
- Custom solutions available
Technical Specifications
| Fiber types | SM or MM | Connector types | FC/SC/ST/LC(PC or APC) |
|---|---|---|---|
| Channel number | 1 | Estimated life cycle | >200 million revolutions |
| Wavelength range | SM:1270-1650nm MM:650-1300nm |
Vibration | MIL-STD-167-1A |
| Insertion loss | <2dB | Mechanical shock | MIL-STD-810G |
| Insertion loss ripple | <0.5dB | IP rating | IP65 or IP68 |
| Weight, approx | 40g (No tail cable and connection included) | Jacket types | 0.9/2/3mm (Kevlar/TPU or Armor) |
| Return loss | ≥40dB | Maximum speed | 2000rpm or More |
| Max Optical power | 23dBm | Working temperature | -45~+75℃ |
| Package style | Pigtails on both ends | Storage temperature | -55~+85℃ |
Main Applications
- Robotics
- Turrets
- Radar Systems
- Seafloor Operation Systems
- Material Conveying Systems
Company Advantages
Providing free custom slip rings solutions, creating propulsion for your technology
- 12,000+ square meter facility with 500+ employees
- Recognized as "National High and New Technology" company with 69 patents
- Long-term partnerships with global enterprises worldwide
- 10,000+ successful designs for civil, military, commercial and industrial applications
- Established in 1996 with 20+ years of production and R&D experience
- Free custom slip ring solutions for various equipment requirements
- Fast delivery service
Typical Applications
Company Information
Frequently Asked Questions
We focus on developing, designing, and manufacturing high quality slip rings, offering various solutions for rotating systems.
A slip ring is an electromechanical device that allows transmission of power and electrical signals from stationary to rotating structures. It improves mechanical performance, simplifies system operation, and eliminates damage-prone wires in movable joints.
- Electrical Slip rings (capsule, through-bore, miniature, etc)
- Signal Slip rings (USB, fiber optic rotary joint, high frequency, etc)
- Pneumatic/Hydraulic Rotary Unions
- Custom Slip Rings
- Large volume series
4. How do I choose a slip ring?
Selection requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. Contact us for assistance with custom/modified solutions.
5. Do you offer custom slip rings?
Yes, our engineers will develop perfect solutions for your needs. Contact us to discuss custom requirements.
